YBX3 series high efficiency flameproof three-phase asynchronous motor
Product overview
YBX3 series high-efficiency flameproof three-phase asynchronous motor is a fully enclosed high-efficiency flameproof three-phase asynchronous motor independently developed and designed by our company. The efficiency index conforms to GB 18613-2020 "motor energy efficiency limit value and energy efficiency grade" in the provisions of the energy saving value of the three-level motor. This series of motors complies with the international standards GB/T 3836.1 "Explosive atmospheres-Part 1: Requirements for adoption" and GB 3836.2 "Explosive atmospheres-Part 2: Equipment protected by flameproof enclosures" d. This series of motors are made of flameproof type, which is suitable for electric drive of mechanical equipment in explosive gas environment. The explosion-proof marks are Ex db 1Mb,Ex db AT1-4)Gb,Ex db lB T(1-4)Gb,Ex dblIC T(1-4)Gb, and the temperature groups are T1, T2T3 and T4. The frame number range of this series of motors is 80-355, and the power level and installation size meet the requirements of GB/T4772.11EC60072-1 and GB/T4772.2/EC60072-2 marks.Category:
Accessories:
Product Description
Product Features
Products mainly have the following characteristics:
1. The main junction box of the motor is located on the top of the base, which can be rotated left and right to meet the requirements of different outlet modes of users;
2. For motors with seat numbers H160 and above, non-stop oil injection and drainage devices can be provided according to user needs, and stator temperature measuring devices (optional PTC or PT100), bearing temperature measuring devices (PT100) and heaters can be provided for H250 and above;
3, and do a good job of H160 and above motor, can provide foot adjustment bolt holes according to user needs;
4. The junction box, machine base, end cover and wind cover have beautiful appearance and novel style, and are conducive to noise reduction and ventilation;
5. The motor adopts a thermal classification of 155 (optional 180) insulation system to extend the service life of the motor;
6. The working system of the motor is S1, the cooling method is IC411, and the protection grade of the shell is IP55;
7. It is suitable for various applications, such as "W", "TH", WTH "," F1 "," F2 "," WF1 "and" WF2 ", where: TH is wet hot belt; WTH is outdoor wet hot belt; F1 is indoor anti-medium corrosion type; F2 is indoor anti-strong corrosion type: WF1 is outdoor anti-medium corrosion type; WF2 is outdoor anti-strong corrosion type;
8. Explosion-proof breathing drain valve is installed at the bottom of the motor base (when installing in the bedroom);
The high quality of the motor ensures high operational reliability.

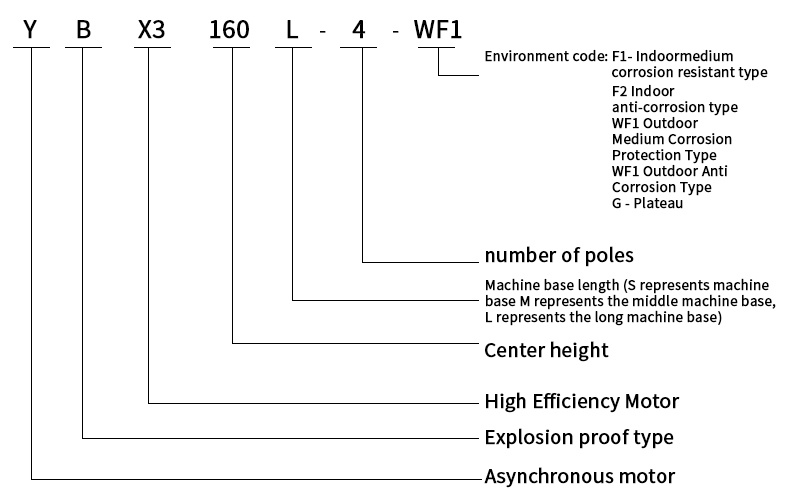

- Model meaning:
| Motor model Type No. |
Rated power Rated output |
Rated Rotating speed Rated speed (r/min) |
Current IN(A) 380V/660V |
Efficiency EFF Ŋ (%) |
Power Factors Power factor Cosφ |
locked-rotor current Rated current Locked current Rated current IST/TFL |
Stall-rotor torque Rated torque Locked Torque Rated torque TST/TFL |
Maximum turn Rated torque Max torque Rated torque TM/TFL |
| YBX3 | (KW) | |||||||
| Synchronous speed Synhronous speed 3000r/min | ||||||||
| YBX3-63M1-2 | 0.18 | 2720 | 0.53/0.30 | 65.0 | 0.80 | 5.5 | 2.3 | 2.2 |
| YBX3-63M2-2 | 0.25 | 2720 | 0.69/0.40 | 68.0 | 0.81 | 5.5 | 2.3 | 2.2 |
| YBX3-71M1-2 | 0.37 | 2730 | 1.01/0.58 | 69.0 | 0.81 | 6.1 | 2.3 | 2.2 |
| YBX3-71M2-2 | 0.55 | 2730 | 1.38/0.79 | 74.0 | 0.82 | 6.1 | 2.3 | 2.3 |
| YBX3-80M1-2 | 0.75 | 2840 | 1.70/0.98 | 80.7 | 0.83 | 6.8 | 2.3 | 2.3 |
| YBX3-80M2-2 | 1.1 | 2840 | 2.43/1.40 | 82.7 | 0.83 | 7.3 | 2.3 | 2.3 |
| YBX3-90S-2 | 1.5 | 2850 | 3.22/1.86 | 84.2 | 0.84 | 7.6 | 2.3 | 2.3 |
| YBX3-90L-2 | 2.2 | 2850 | 4.58/2.64 | 85.9 | 0.85 | 7.8 | 2.3 | 2.3 |
| YBX3-100L-2 | 3 | 2870 | 6.02/3.46 | 87.1 | 0.87 | 8.1 | 2.3 | 2.3 |
| YBX3-112M-2 | 4 | 2890 | 7.8/4.5 | 88.1 | 0.88 | 8.3 | 2.3 | 2.3 |
| YBX3-132S1-2 | 5.5 | 2900 | 10.7/6.1 | 89.2 | 0.88 | 8.0 | 2.2 | 2.3 |
| YBX3-132S2-2 | 7.5 | 2900 | 14.2/8.2 | 90.1 | 0.89 | 7.8 | 2.2 | 2.3 |
| YBX3-160M1-2 | 11 | 2930 | 20.6/11.9 | 91.2 | 0.89 | 7.9 | 2.2 | 2.3 |
| YBX3-160M2-2 | 15 | 2930 | 27.9/16.0 | 91.9 | 0.89 | 8.0 | 2.2 | 2.3 |
| YBX3-160L-2 | 18.5 | 2930 | 34.1/19.7 | 92.4 | 0.89 | 8.1 | 2.2 | 2.3 |
| YBX3-180M-2 | 22 | 2950 | 40.5/23.3 | 92.7 | 0.89 | 8.2 | 2.2 | 2.3 |
| YBX3-200L1-2 | 30 | 2950 | 54.9/31.6 | 93.3 | 0.89 | 7.5 | 2.2 | 2.3 |
| YBX3-200L2-2 | 37 | 2950 | 67.4/38.8 | 93.7 | 0.89 | 7.5 | 2.2 | 2.3 |
| YBX3-225M-2 | 45 | 2960 | 81.7/47.1 | 94.0 | 0.89 | 7.6 | 2.2 | 2.3 |
| YBX3-250M-2 | 55 | 2960 | 99.6/57.3 | 94.3 | 0.89 | 7.6 | 2.2 | 2.3 |
| YBX3-280S-2 | 75 | 2970 | 135.2/77.8 | 94.7 | 0.89 | 6.9 | 2.0 | 2.3 |
| YBX3-280M-2 | 90 | 2970 | 161.7/93.1 | 95.0 | 0.89 | 7.0 | 2.0 | 2.3 |
| YBX3-315S-2 | 110 | 2980 | 197.3/113.6 | 95.2 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-315M-2 | 132 | 2980 | 236.2/136.0 | 95.4 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-315L1-2 | 160 | 2980 | 285.7/164.5 | 95.6 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-315L2-2 | 200 | 2980 | 356.4/205.2 | 95.8 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-355S1-2 | 185 | 2980 | 330.3/190.2 | 95.6 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-355S2-2 | 200 | 2980 | 356.4/205.2 | 95.8 | 0.89 | 7.1 | 1.9 | 2.2 |
| YBX3-355M1-2 | 220 | 2980 | 392.0/225.7 | 95.8 | 0.89 | 7.1 | 1.8 | 2.2 |
| YBX3-355M2-2 | 250 | 2980 | 440.5/253.7 | 95.8 | 0.90 | 7.1 | 1.8 | 2.2 |
| YBX3-355L1-2 | 280 | 2980 | 493.4/284.1 | 95.8 | 0.90 | 7.1 | 1.8 | 2.2 |
| YBX3-355L2-2 | 315 | 2980 | 555.1/319.6 | 95.8 | 0.90 | 7.1 | 1.8 | 2.2 |
| Motor model Type No. |
Rated power Rated output |
Rated Rotating speed Rated speed (r/min) |
Current IN(A) 380V/660V |
Efficiency EFF Ŋ (%) |
Power Factors Power factor Cosφ |
locked-rotor current Rated current Locked current Rated current IST/TFL |
Stall-rotor torque Rated torque Locked Torque Rated torque TST/TFL |
Maximum turn Rated torque Max torque Rated torque TM/TFL |
| YBX3 | (KW) | |||||||
| Synchronous speed Synhronous speed 1500r/min | ||||||||
| YBX3-63M1-4 | 0.12 | 1340 | 0.44/0.26 | 57.0 | 0.72 | 4.4 | 2.3 | 2.2 |
| YBX3-63M2-4 | 0.18 | 1340 | 0.62/0.36 | 60.0 | 0.73 | 4.4 | 2.3 | 2.2 |
| YBX3-71M1-4 | 0.25 | 1350 | 0.79/0.45 | 65.0 | 0.74 | 5.2 | 2.3 | 2.2 |
| YBX3-71M2-4 | 0.37 | 1350 | 1.12/0.64 | 67.0 | 0.75 | 5.2 | 2.3 | 2.2 |
| YBX3-80M1-4 | 0.55 | 1390 | 1.43/0.82 | 77.8 | 0.75 | 6.3 | 2.3 | 2.3 |
| YBX3-80M2-4 | 0.75 | 1390 | 1.84/1.06 | 82.5 | 0.75 | 6.5 | 2.3 | 2.3 |
| YBX3-90S-4 | 1.1 | 1400 | 2.65/1.53 | 84.1 | 0.75 | 6.6 | 2.3 | 2.3 |
| YBX3-90L-4 | 1.5 | 1400 | 3.56/2.05 | 85.3 | 0.75 | 6.9 | 2.3 | 2.3 |
| YBX3-100L1-4 | 2.2 | 1420 | 4.76/2.74 | 86.7 | 0.81 | 7.5 | 2.3 | 2.3 |
| YBX3-100L2-4 | 3 | 1420 | 6.34/3.65 | 87.7 | 0.82 | 7.6 | 2.3 | 2.3 |
| YBX3-112M-4 | 4 | 1430 | 8.4/4.8 | 88.6 | 0.82 | 7.7 | 2.3 | 2.3 |
| YBX3-132S-4 | 5.5 | 1450 | 11.4/6.6 | 89.6 | 0.82 | 7.5 | 2.0 | 2.3 |
| YBX3-132M-4 | 7.5 | 1450 | 15.2/8.7 | 90.4 | 0.83 | 7.4 | 2.0 | 2.3 |
| YBX3-160M-4 | 11 | 1450 | 21.5/12.4 | 91.4 | 0.85 | 7.5 | 2.0 | 2.3 |
| YBX3-160L-4 | 15 | 1450 | 29.1/16.8 | 92.1 | 0.85 | 7.5 | 2.0 | 2.3 |
| YBX3-180M-4 | 18.5 | 1470 | 35.3/20.3 | 92.6 | 0.86 | 7.7 | 2.0 | 2.3 |
| YBX3-180L-4 | 22 | 1470 | 41.8/24.1 | 93.0 | 0.86 | 7.8 | 2.0 | 2.3 |
| YBX3-200L-4 | 30 | 1470 | 55.9/32.2 | 93.6 | 0.87 | 7.2 | 2.0 | 2.3 |
| YBX3-225S-4 | 37 | 1480 | 68.8/39.6 | 93.9 | 0.87 | 7.3 | 2.0 | 2.3 |
| YBX3-225M-4 | 45 | 1480 | 83.4/48.0 | 94.2 | 0.87 | 7.4 | 2.0 | 2.3 |
| YBX3-250M-4 | 55 | 1480 | 100.4/57.8 | 94.6 | 0.88 | 7.4 | 2.0 | 2.3 |
| YBX3-280S-4 | 75 | 1480 | 136.3/78.5 | 95.0 | 0.88 | 6.7 | 2.0 | 2.3 |
| YBX3-280M-4 | 90 | 1480 | 161.4/92.9 | 95.2 | 0.89 | 7.0 | 2.0 | 2.3 |
| YBX3-315S-4 | 110 | 1485 | 196.8/133.3 | 95.4 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-315M-4 | 132 | 1485 | 235.7/135.7 | 95.8 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-315L1-4 | 160 | 1485 | 285.1/164.1 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-315L2-4 | 200 | 1485 | 355.7/204.8 | 95.8 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355S1-4 | 185 | 1485 | 329.7/189.8 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355S2-4 | 200 | 1485 | 355.6/204.8 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355M1-4 | 220 | 1485 | 391.2/225.2 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355M2-4 | 250 | 1485 | 444.6/256.0 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355L1-4 | 280 | 1485 | 497.9/286.7 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| YBX3-355L2-4 | 315 | 1485 | 560.0/322.5 | 96.0 | 0.89 | 7.0 | 2.0 | 2.2 |
| Motor model Type No. |
Rated power Rated output |
Rated Rotating speed Rated speed (r/min) |
Current IN(A) 380V/660V |
Efficiency EFF Ŋ (%) |
Power Factors Power factor Cosφ |
locked-rotor current Rated current Locked current Rated current IST/TFL |
Stall-rotor torque Rated torque Locked Torque Rated torque TST/TFL |
Maximum turn Rated torque Max torque Rated torque TM/TFL |
| YBX3 | (KW) | |||||||
| Synchronous speed Synhronous speed 1000r/min | ||||||||
| YBX3-71M1-6 | 0.18 | 880 | 0.74/0.43 | 56.0 | 0.66 | 4.0 | 1.9 | 2.0 |
| YBX3-71M2-6 | 0.25 | 880 | 0.95/0.55 | 59.0 | 0.68 | 4.0 | 1.9 | 2.0 |
| YBX3-80M1-6 | 0.37 | 890 | 1.30/0.75 | 62.0 | 0.70 | 4.7 | 1.9 | 2.0 |
| YBX3-80M2-6 | 0.55 | 890 | 1.58/0.91 | 73.6 | 0.72 | 4.7 | 1.9 | 2.1 |
| YBX3-90S-6 | 0.75 | 910 | 2.01/1.15 | 78.9 | 0.72 | 5.8 | 2.1 | 2.1 |
| YBX3-90L-6 | 1.1 | 910 | 2.83/1.63 | 81.0 | 0.73 | 5.9 | 2.1 | 2.1 |
| YBX3-100L-6 | 1.5 | 930 | 3.73/2.15 | 82.5 | 0.74 | 6.0 | 2.1 | 2.1 |
| YBX3-112M-6 | 2.2 | 940 | 5.36/3.09 | 84.3 | 0.74 | 6.0 | 2.1 | 2.1 |
| YBX3-132S-6 | 3 | 960 | 7.20/4.14 | 85.6 | 0.74 | 6.2 | 2.0 | 2.1 |
| YBX3-132M1-6 | 4 | 960 | 9.5/5.5 | 86.8 | 0.74 | 6.8 | 2.0 | 2.1 |
| YBX3-132M2-6 | 5.5 | 960 | 12.7/7.3 | 88.0 | 0.75 | 7.1 | 2.0 | 2.1 |
| YBX3-160M-6 | 7.5 | 970 | 16.4/9.4 | 89.1 | 0.78 | 6.7 | 2.1 | 2.1 |
| YBX3-160L-6 | 11 | 970 | 23.7/13.7 | 90.3 | 0.78 | 6.9 | 2.1 | 2.1 |
| YBX3-180L-6 | 15 | 980 | 30.9/17.8 | 91.2 | 0.81 | 7.2 | 2.0 | 2.1 |
| YBX3-200L1-6 | 18.5 | 980 | 37.8/21.8 | 91.7 | 0.81 | 7.2 | 2.1 | 2.1 |
| YBX3-200L2-6 | 22 | 980 | 44.2/25.5 | 92.2 | 0.82 | 7.3 | 2.1 | 2.1 |
| YBX3-225M-6 | 30 | 980 | 60.6/34.9 | 92.9 | 0.81 | 7.1 | 2.0 | 2.1 |
| YBX3-250M-6 | 37 | 980 | 71.7/41.3 | 93.3 | 0.84 | 7.1 | 2.1 | 2.1 |
| YBX3-280S-6 | 45 | 980 | 84.9/48.9 | 93.7 | 0.86 | 7.2 | 2.1 | 2.0 |
| YBX3-280M-6 | 55 | 990 | 103.3/59.5 | 94.1 | 0.86 | 7.2 | 2.1 | 2.0 |
| YBX3-315S-6 | 75 | 990 | 141.7/81.6 | 94.6 | 0.85 | 7.0 | 2.0 | 2.0 |
| YBX3-315M-6 | 90 | 990 | 171.6/98.8 | 94.9 | 0.84 | 7.0 | 2.0 | 2.0 |
| YBX3-315L1-6 | 110 | 990 | 206.8/119.0 | 95.1 | 0.85 | 7.0 | 2.0 | 2.0 |
| YBX3-315L2-6 | 132 | 990 | 244.5/140.7 | 95.4 | 0.86 | 7.0 | 2.0 | 2.0 |
| YBX3-355S-6 | 160 | 990 | 292.3/168.3 | 95.6 | 0.87 | 7.0 | 1.9 | 2.0 |
| YBX3-355M1-6 | 185 | 990 | 338.0/194.6 | 95.6 | 0.87 | 7.0 | 1.9 | 2.0 |
| YBX3-355M2-6 | 200 | 990 | 364.6/210.0 | 95.8 | 0.87 | 7.0 | 1.9 | 2.0 |
| YBX3-355L1-6 | 220 | 990 | 401.0/231.0 | 95.8 | 0.87 | 7.0 | 1.9 | 2.0 |
| YBX3-355L2-6 | 250 | 990 | 455.7/262.4 | 95.8 | 0.87 | 7.0 | 1.9 | 2.0 |
| Motor model Type No. |
Rated power Rated output |
Rated Rotating speed Rated speed (r/min) |
Current IN(A) 380V/660V |
Efficiency EFF Ŋ (%) |
Power Factors Power factor Cosφ |
locked-rotor current Rated current Locked current Rated current IST/TFL |
Stall-rotor torque Rated torque Locked Torque Rated torque TST/TFL |
Maximum turn Rated torque Max torque Rated torque TM/TFL |
| YBX3 | (KW) | |||||||
| Synchronous speed Synhronous speed 750r/min | ||||||||
| YBX3-80M1-8 | 0.18 | 630 | 0.88/0.51 | 51.0 | 0.61 | 3.3 | 1.8 | 1.9 |
| YBX3-80M2-8 | 0.25 | 650 | 1.15/0.66 | 54.0 | 0.61 | 3.3 | 1.8 | 1.9 |
| YBX3-90S-8 | 0.37 | 670 | 1.49/0.86 | 62.0 | 0.61 | 4.0 | 1.8 | 1.9 |
| YBX3-90L-8 | 0.55 | 670 | 2.17/1.25 | 63.0 | 0.61 | 4.0 | 1.8 | 2.0 |
| YBX3-100L1-8 | 0.75 | 690 | 2.48/1.43 | 68.7 | 0.67 | 4.0 | 1.8 | 2.0 |
| YBX3-100L2-8 | 1.1 | 690 | 3.53/2.03 | 70.7 | 0.67 | 5.0 | 1.8 | 2.0 |
| YBX3-112M-8 | 1.5 | 690 | 4.41/2.54 | 72.8 | 0.71 | 5.0 | 1.8 | 2.0 |
| YBX3-132S-8 | 2.2 | 710 | 6.04/3.48 | 77.9 | 0.71 | 6.0 | 1.8 | 2.0 |
| YBX3-132M-8 | 3 | 710 | 7.91/4.56 | 78.9 | 0.73 | 6.0 | 1.8 | 2.0 |
| YBX3-160M1-8 | 4 | 720 | 10.4/6.0 | 79.9 | 0.73 | 6.0 | 1.9 | 2.0 |
| YBX3-160M2-8 | 5.5 | 720 | 13.8/8.0 | 82.0 | 0.74 | 6.0 | 1.9 | 2.0 |
| YBX3-160L-8 | 7.5 | 720 | 18.1/10.4 | 84.0 | 0.75 | 6.0 | 1.9 | 2.0 |
| YBX3-180L-8 | 11 | 720 | 25.8/14.9 | 86.4 | 0.75 | 6.5 | 2.0 | 2.0 |
| YBX3-200L-8 | 15 | 730 | 34.5/19.9 | 86.9 | 0.76 | 6.6 | 2.0 | 2.0 |
| YBX3-225S-8 | 18.5 | 740 | 41.5/23.9 | 89.1 | 0.76 | 6.6 | 1.9 | 2.0 |
| YBX3-225M-8 | 22 | 740 | 47.8/27.5 | 89.6 | 0.78 | 6.6 | 1.9 | 2.0 |
| YBX3-250M-8 | 30 | 740 | 63.8/36.8 | 90.4 | 0.79 | 6.5 | 1.9 | 2.0 |
| YBX3-280S-8 | 37 | 740 | 78.3/45.1 | 90.9 | 0.79 | 6.6 | 1.9 | 2.0 |
| YBX3-280M-8 | 45 | 740 | 94.7/54.5 | 91.4 | 0.79 | 6.6 | 1.9 | 2.0 |
| YBX3-315S-8 | 55 | 740 | 113.2/65.2 | 92.3 | 0.80 | 6.6 | 1.8 | 2.0 |
| YBX3-315M-8 | 75 | 740 | 152.8/88.0 | 93.2 | 0.80 | 6.4 | 1.8 | 2.0 |
| YBX3-315L1-8 | 90 | 740 | 182.8/105.3 | 93.5 | 0.80 | 6.4 | 1.8 | 2.0 |
| YBX3-315L2-8 | 110 | 740 | 218.0/125.5 | 93.5 | 0.82 | 6.4 | 1.8 | 2.0 |
| YBX3-355S-8 | 132 | 740 | 260.7/150.1 | 93.8 | 0.82 | 6.4 | 1.8 | 2.0 |
| YBX3-355M-8 | 160 | 740 | 315.4/181.6 | 94.0 | 0.82 | 6.4 | 1.8 | 2.0 |
| YBX3-355L1-8 | 185 | 740 | 364.7/210.0 | 94.0 | 0.82 | 6.4 | 1.8 | 2.0 |
| YBX3-355L2-8 | 200 | 740 | 388.7/233.8 | 94.2 | 0.83 | 6.4 | 1.8 | 2.0 |
| Synchronous speed Synhronous speed 600r/min | ||||||||
| YBX3-315S-10 | 45 | 590 | 99.9/59.6 | 91.2 | 0.75 | 6.2 | 1.3 | 2.0 |
| YBX3-315M-10 | 55 | 590 | 121.4/69.9 | 91.8 | 0.75 | 6.2 | 1.3 | 2.0 |
| YBX3-315L1-10 | 75 | 590 | 162.4/93.5 | 92.3 | 0.76 | 6.2 | 1.3 | 2.0 |
| YBX3-315L2-10 | 90 | 590 | 191.2/110.1 | 92.9 | 0.77 | 6.2 | 1.3 | 2.0 |
| YBX3-355S-10 | 90 | 590 | 191.2/110.1 | 92.9 | 0.77 | 6.2 | 1.3 | 2.0 |
| YBX3-355M1-10 | 110 | 590 | 230.2/132.5 | 93.1 | 0.78 | 6.0 | 1.3 | 2.0 |
| YBX3-355M2-10 | 132 | 590 | 275.0/158.3 | 93.5 | 0.78 | 6.0 | 1.3 | 2.0 |
| YBX3-355L1-10 | 160 | 590 | 333.3/191.9 | 93.5 | 0.78 | 6.0 | 1.3 | 2.0 |
| YBX3-355L2-10 | 185 | 590 | 385.4/221.9 | 93.5 | 0.78 | 6.0 | 1.3 | 2.0 |
Key words:
Related Products
Welcome your message consultation
Any questions? Keep in touch. We 'd love to hear from you.
